CQYD/X-100N Inflatable PFD Belt

Compact 100N Inflatable Belt with a Transparent Inspection Window

The CQYD/X-100N Inflatable PFD Belt is a compact personal flotation device designed for adult users participating in suitable swimming, fishing, boating and other water-based activities.

It features a single independent air chamber, a lightweight waist-worn design and a transparent inspection window. The window allows the user to check the condition of the inflation system and determine whether consumable components need to be replaced.

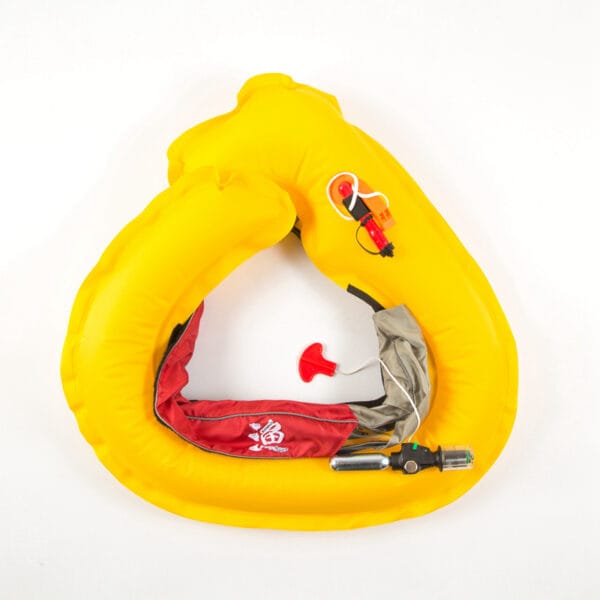

When activated, the air chamber inflates rapidly to provide at least 100N of buoyancy and help keep the wearer’s head, neck and shoulders above the water.

Key Features

• Single independent air chamber
• Minimum buoyancy of 100N
• Adult universal size
• Inflation time of less than five seconds
• Pull-cord and water-activated inflation
• Auto/manual inflator
• 16g CO₂ inflation cylinder
• Transparent inspection window
• Oral inflation tube
• Reflective tape
• Safety rescue whistle

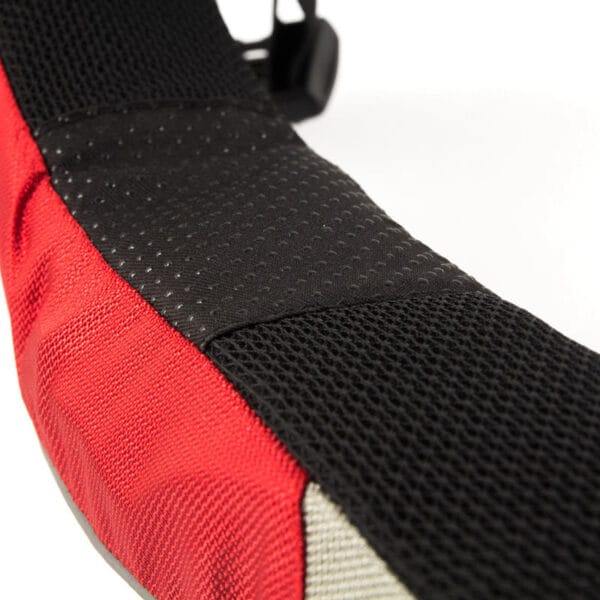

• High-strength material
• Lightweight and compact waist-worn design

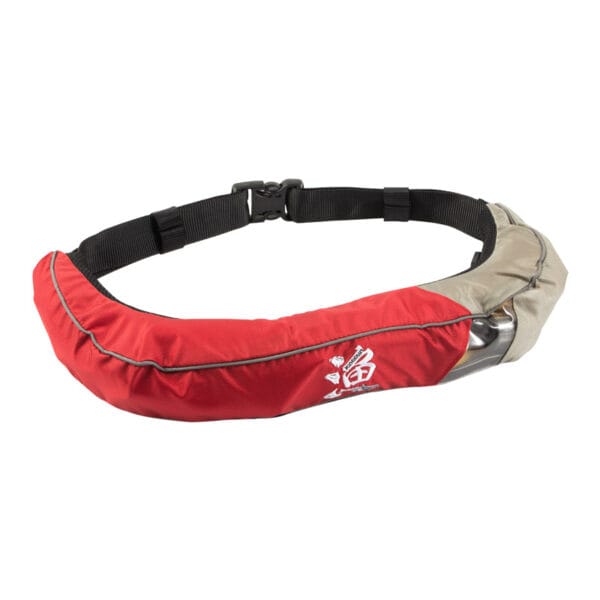

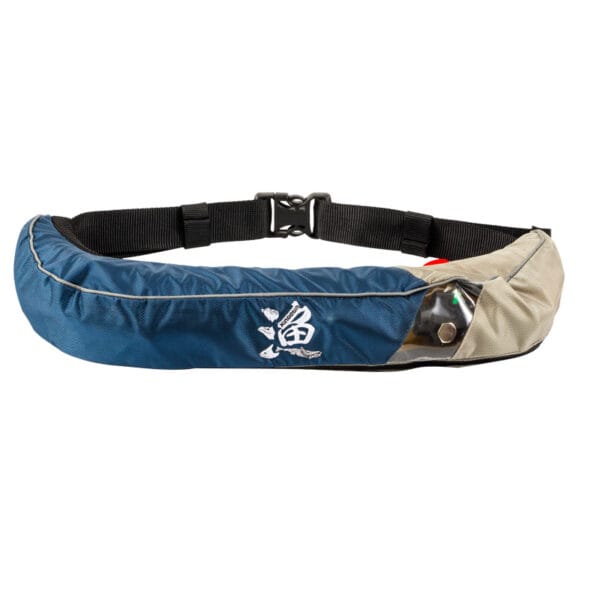

• Available in blue and red

Transparent Inspection Window

The CQYD/X-100N is equipped with a transparent window that allows the operating condition of the inflation system to be observed without opening the outer cover.

This design helps users check whether the CO₂ cylinder and yellow bobbin remain ready for use. After the inflation system has been activated, these consumable components must be checked and replaced as required before the belt is used again.

Rapid Inflation

The product page states that the independent air chamber can inflate within approximately three seconds when the pull cord is activated or the inflation mechanism is submerged in water.

The listed product specification gives an inflation time of less than five seconds.

Once completely inflated, the chamber provides at least 100N of buoyancy and is designed to help keep the wearer’s head, neck and shoulders above the surface.

Multiple Inflation Methods

The CQYD/X-100N is equipped with an auto/manual inflator and can be activated through:

• Pull-cord activation
• Water-activated inflation
• Manual inflation through the oral inflation tube

The oral inflation tube allows additional air to be introduced into the chamber manually when required.

Visibility and Emergency Assistance

Reflective tape helps improve the visibility of the inflated belt in low-light conditions.

A safety rescue whistle provides an additional way for the wearer to attract attention and request assistance during an emergency.

Recommended Applications

According to the product page, the CQYD/X-100N can be used for suitable activities in:

• Ocean environments
• Inland waters
• Waterways
• Navigation and boating
• Swimming
• Fishing
• Hunting
• Appropriate recreational water activities

Inflatable life belts are primarily intended for experienced swimmers who want a flotation device that is less bulky than a conventional vest. The product category recommends their use in suitable conditions such as calm water and situations where the wearer remains close to shore.

Product Specifications

Model: CQYD/X-100N
Product Type: Inflatable PFD Belt
Air Chamber: Single independent chamber
Size: Adult universal
Buoyancy: ≥100N
Listed Inflation Time: Less than 5 seconds
CO₂ Cylinder: 16g
Inflation System: Auto/manual inflator
Additional Inflation Method: Oral inflation tube
Production Standard: ISO 12402-5
Available Colors: Blue and red

Main Components

The CQYD/X-100N includes:

• 16g CO₂ cylinder
• Reflective tape
• Oral inflation tube
• Safety whistle
• Independent air chamber
• Buckle
• Auto/manual inflator
• Safety strap
• Hook-and-loop fastening tape
• Transparent inspection window

Important Safety Information

The CQYD/X-100N is intended to provide protection against drowning. It does not guarantee rescue or survival.

The belt provides its intended buoyancy only after the air chamber has been completely inflated. Users must read the operating instructions and product information carefully before use and follow all information marked on the product.

CO₂ cylinders contain gas under high pressure and must be handled carefully. Keep CO₂ cylinders away from children and use only cylinders that comply with the product’s specified requirements.

The transparent window should be used to check the inflation system before use. After activation, inspect the CO₂ cylinder and yellow bobbin and replace the required consumable components before returning the belt to service.

Inflatable life belts are not intended for high-impact or high-speed activities such as water skiing or tubing. The product category also states that they are not ideal for cold-water use or for boating alone without other people nearby.

Compact Flotation Support with Easier Status Inspection

The CQYD/X-100N combines 100N minimum buoyancy, rapid inflation and a compact waist-worn design with a transparent window for easier inspection of the inflation system.

Contact us to request pricing, product details and ordering information for the CQYD/X-100N Inflatable PFD Belt.
