CQYD/I-100N Waist Life Jacket

Compact 100N Buoyancy with a Self-Positioning Inflatable Chamber

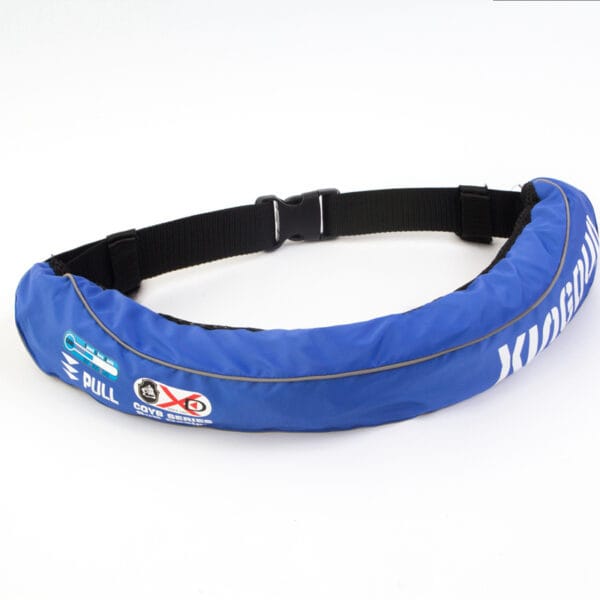

The CQYD/I-100N Waist Life Jacket is a compact personal flotation device designed for adult users who require reliable buoyancy support without the bulk of a conventional life jacket.

Worn around the waist, it uses a single independent air chamber and a 24g CO₂ cylinder to provide at least 100N of buoyancy. Its lightweight design allows greater freedom of movement, making it suitable for experienced swimmers participating in appropriate boating, swimming, fishing and recreational water activities.

Key Features

• Minimum buoyancy of 100N
• Single independent air chamber
• Adult universal size
• Inflation time of less than five seconds
• Automatic and manual inflation
• 24g CO₂ inflation cylinder

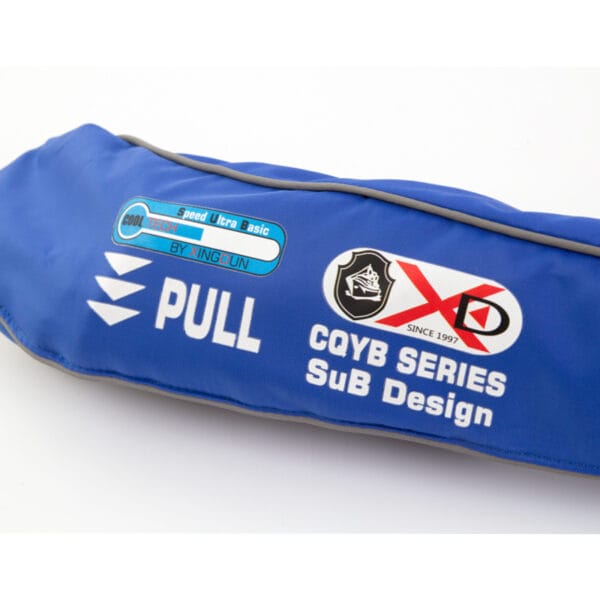

• Pull-cord activation
• Oral inflation tube for supplementary inflation
• Self-positioning inflatable chamber
• Reflective tape for improved visibility
• Integrated safety whistle
• High-strength material
• Lightweight and compact waist-worn design
• Four available colors

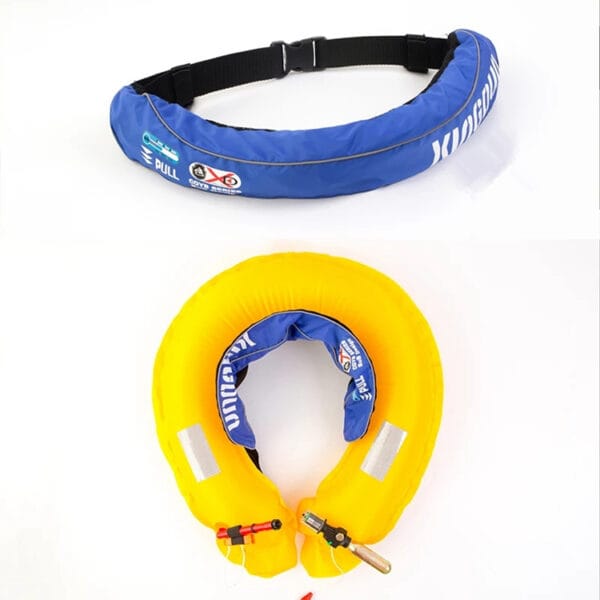

Self-Positioning Inflatable Chamber

A distinguishing feature of the CQYD/I-100N is its patented chamber configuration.

After the air chamber is fully inflated, it automatically surrounds the wearer’s waist. The user does not need to continue holding the inflated chamber in position, helping the flotation device remain properly arranged around the body.

Rapid Automatic or Manual Inflation

The CQYD/I-100N can be activated by pulling the inflation cord or through contact with water. The product page states that the independent air chamber inflates in less than five seconds.

Once fully inflated, the chamber provides buoyancy intended to help keep the wearer’s head, neck and shoulders above the surface of the water.

The oral inflation tube provides an additional method for manually adding air to the chamber when required.

Visibility and Emergency Assistance

Reflective tape is fitted to the product to improve the wearer’s visibility in low-light conditions.

An integrated safety whistle provides an additional means of attracting attention and requesting assistance during an emergency.

Recommended Applications

According to the product information, the CQYD/I-100N can be used for suitable activities in:

• Ocean environments
• Inland waters
• Waterways
• Navigation and boating
• Water sports
• Swimming
• Fishing
• Hunting

Inflatable waist flotation devices are particularly suited to experienced swimmers seeking a compact alternative to a conventional flotation vest. They are best used in appropriate water conditions, including calm waters and situations where the user remains relatively close to shore.

Product Specifications

Model: CQYD/I-100N
Product Type: Waist Life Jacket / Inflatable Life Belt
Air Chamber: Single independent chamber
Size: Adult universal
Buoyancy: ≥100N
Inflation Time: Less than 5 seconds
CO₂ Cylinder: 24g
Inflation Methods: Automatic inflation, pull-cord activation and oral inflation
Production Standard: ISO 12402-4

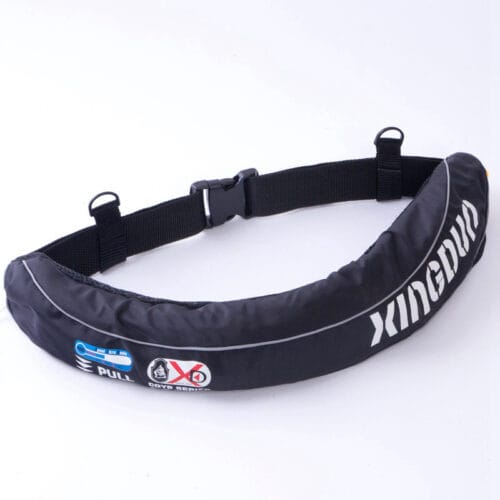

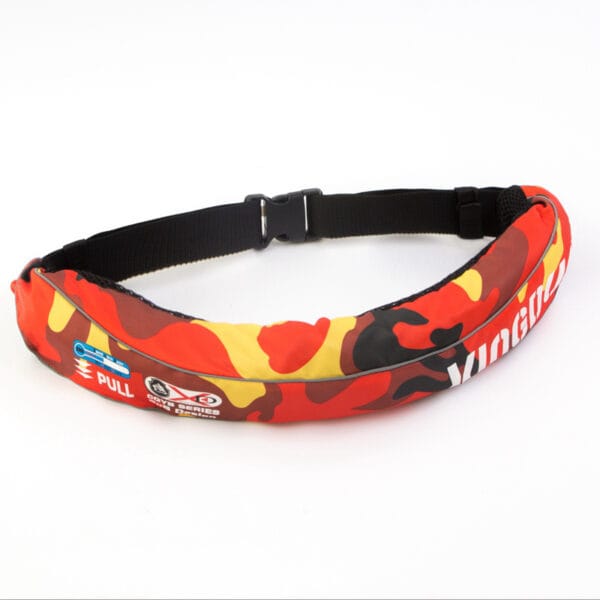

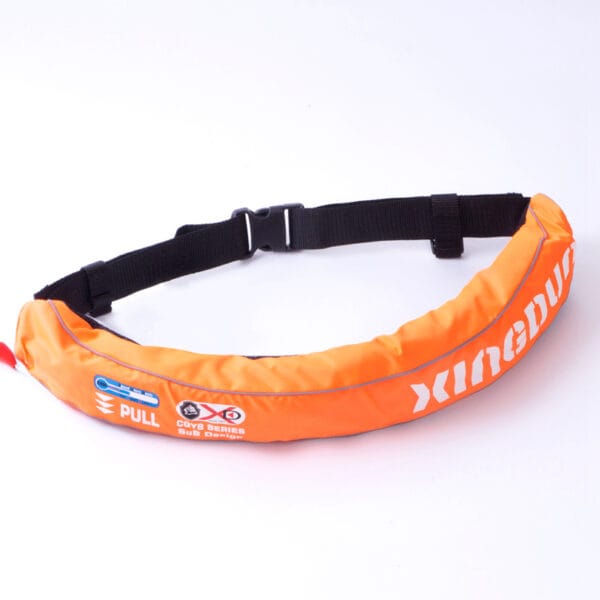

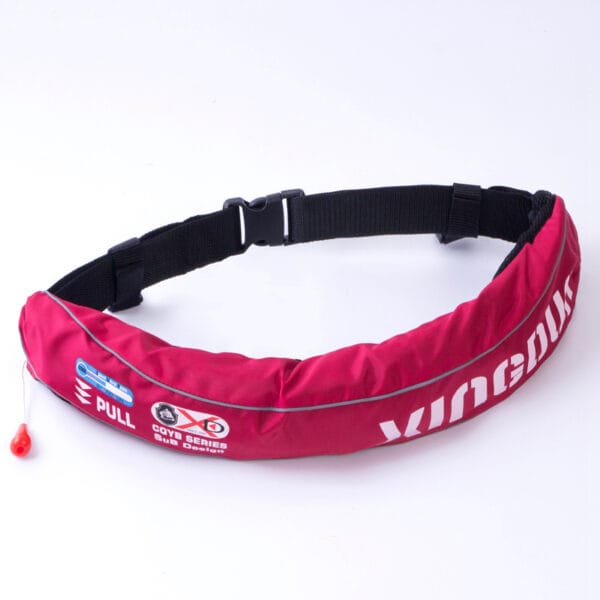

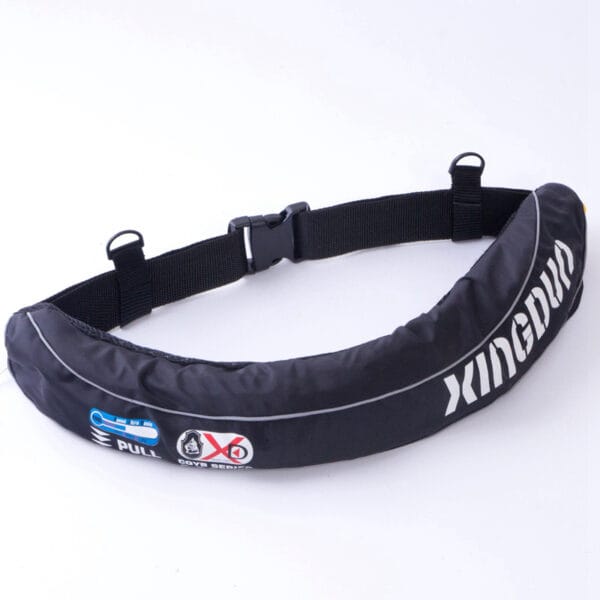

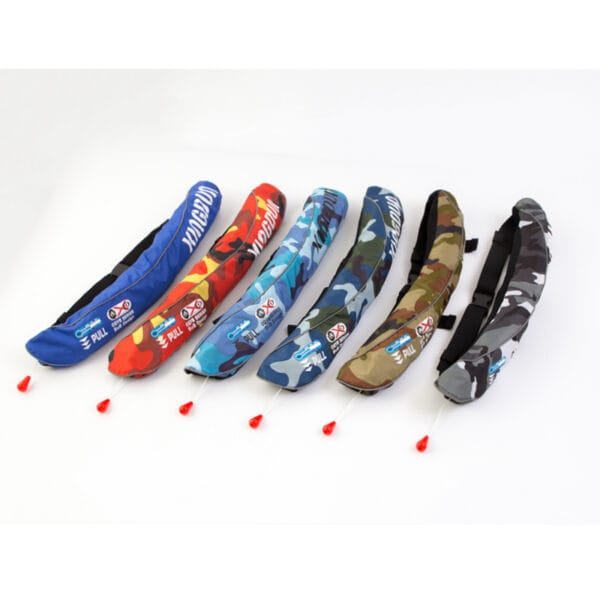

Available Colors: Black, orange, red and camouflage

Main Components

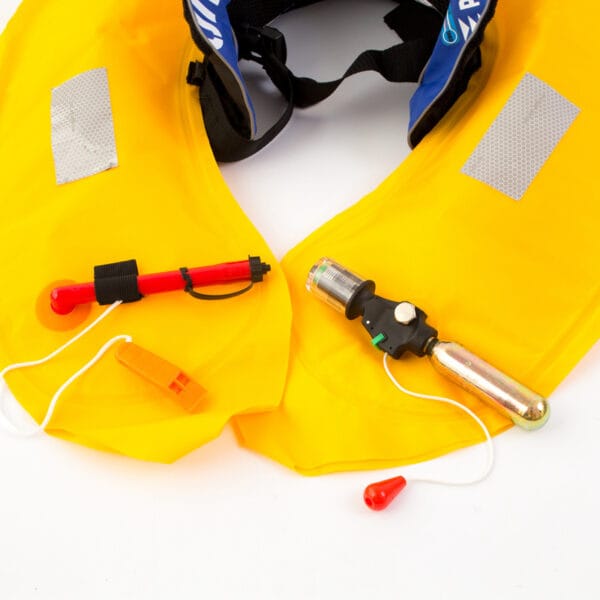

The CQYD/I-100N includes:

• 24g CO₂ cylinder
• Reflective tape
• Oral inflation tube
• Safety whistle
• Independent air chamber
• Buckle
• Automatic/manual inflator
• Safety strap

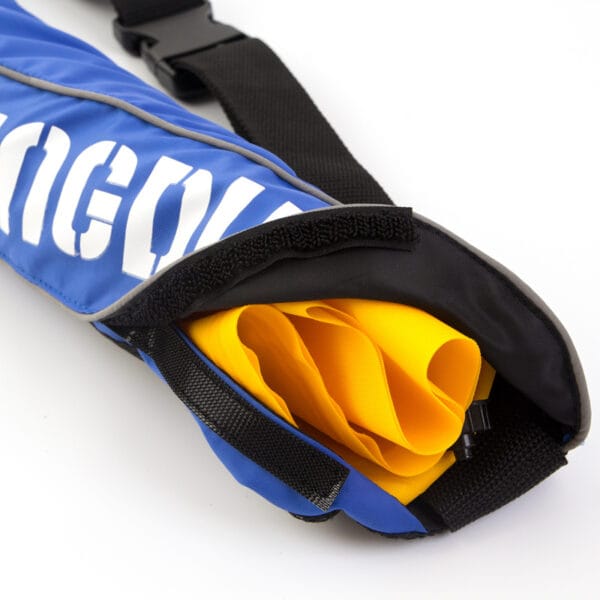

• Hook-and-loop fastening tape

Important Safety Information

The CQYD/I-100N is intended to provide protection against drowning, but it does not guarantee rescue or survival.

The product provides its intended buoyancy only after the air chamber has been completely inflated. Users must carefully read the operating instructions and product information before use and follow all information marked on the life belt.

CO₂ cylinders are stored under high pressure and must be handled carefully. Keep the cylinders away from children and use only cylinders that meet the product’s specified requirements.

Inflatable life belts are intended primarily for experienced swimmers. They are not designed for high-impact or high-speed activities such as water skiing or tubing. They are also not ideal for cold-water conditions or for boating alone without other people nearby.

Compact Flotation Support for Suitable Water Activities

Combining a waist-worn design, 100N minimum buoyancy, rapid inflation and a self-positioning air chamber, the CQYD/I-100N provides a compact flotation solution for suitable boating, fishing, swimming and recreational water applications.

Contact Xingdun Marine to request product information, specifications and ordering details for the CQYD/I-100N Waist Life Jacket.
